Brass Cable Gland Manufacturer in Jamnagar, India

Gland Selection Guide

Which gland does your cable need?

Four questions decide every gland order. Answer them and the right BS 6121 type is obvious — send the answers with your enquiry and we quote faster.

1

Armoured or unarmoured?

SWA / braided / tape-armoured cable needs an armour-clamping gland (BW, CW, E1W). Unarmoured cable needs only an outer seal (A1/A2).

2

Indoor or outdoor?

Dry indoor panels take BW or A2. Outdoor, washdown or buried runs need sealed CW, E1W or IP68 PG/metric glands.

3

Hazardous area?

Oil, gas and mining zones need flameproof-style types — A2F, E1FW, E1FU — matched to your area classification.

4

What IP rating?

IP66 for dust-tight and jet-proof, IP67 for temporary immersion, IP68 for continuous submersion duty.

Gland Type	Cable Type	Sealing System	IP Options	Typical Use
BW	SWA armoured	No seal (armour clamp only)	IP3X	Dry indoor panels
CW	SWA armoured	Single compression — outer sheath	IP66 / 67 / 68	Outdoor armoured cable
E1W / E2W	SWA armoured	Double compression — inner bedding + outer sheath	IP66 / 67 / 68	Heavy industrial duty
A1 / A2	Unarmoured	Single seal — outer sheath	IP66	Indoor & weatherproof
PG / Metric	Unarmoured	Compression dome seal	IP68	Panels, enclosures, machines

Gland Types

Eight ranges. Every standard covered.

From indoor BW glands to flameproof Ex types — every gland below is machined in-house in Jamnagar to BS 6121 / IEC 62444 type conventions, in the size and thread your project specifies.

01

A1/A2 Cable Glands

Unarmoured single-seal glands, IP66 — indoor and weatherproof, nickel-plated options

02

BW Cable Glands

Indoor SWA glands — 2-part / 3-part, BW2 / BW4, 20–90mm, short & long

03

CW Cable Glands

Outdoor SWA glands — single outer seal, IP66/67/68, shroud & earth-tag kits

04

E1W/E2W Double Compression

Inner + outer seal glands, IP66/67/68 — for industrial armoured cable

05

Flameproof & Ex Glands

Hazardous-area gland types — A2F, E1FW, E1FU for oil, gas & mining applications

06

PG & Metric Glands

PG7–PG48 and M12–M63 weatherproof glands, IP68, NPT / BSP threads

07

Marine & Weatherproof

Corrosion-resistant nickel-plated brass glands for marine and outdoor duty

08

Accessories & Kits

Brass earth tags, lock nuts, PVC shrouds, reducers, stopping plugs, complete kits

Where Our Glands Go

Glands for every industry.

If you terminate cable in any of these industries, you are already buying glands from our range. Send your BOM or BOQ.

●Oil, Gas & Petrochemical

Flameproof-style Ex glands
E1FW / E1FU armoured types
Nickel-plated corrosion resistance
Earth tag & shroud kits

●Marine & Offshore

Marine weatherproof glands
IP68 sealed PG / metric
Nickel-plated brass bodies
Salt-spray resistant finishes

●Panel Building & Switchgear

A1/A2 unarmoured glands
PG & metric enclosure glands
Lock nuts & sealing washers
High-volume repeat supply

●Construction & Infrastructure

BW indoor SWA glands
CW outdoor SWA glands
Complete gland kits
EPC project packing

●Utilities & Power

CW / E1W outdoor glands
Double compression types
UV-stable shrouds
20–90mm size range

●Renewables & Rail

IP68 weatherproof glands
PG / metric for inverters
Vibration-proof assembly
Export documentation

In Production

Machined, assembled and inspected in Jamnagar.

A glimpse of our cable gland output — clean threads, consistent plating, ready for export kit packing.

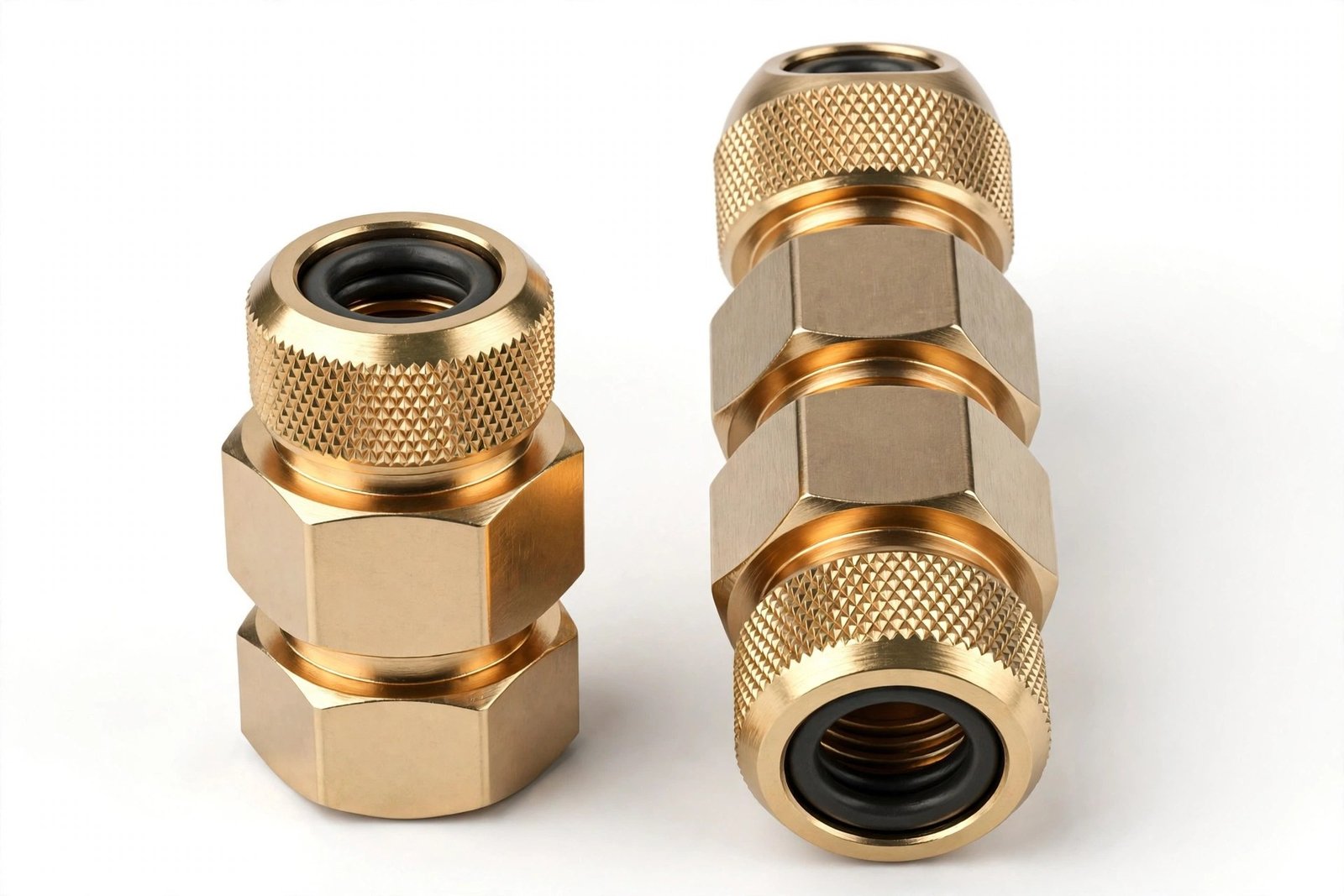

Brass double compression E1W cable glands manufactured in Jamnagar

Double compression glandsE1W/E2W, IP66/67/68

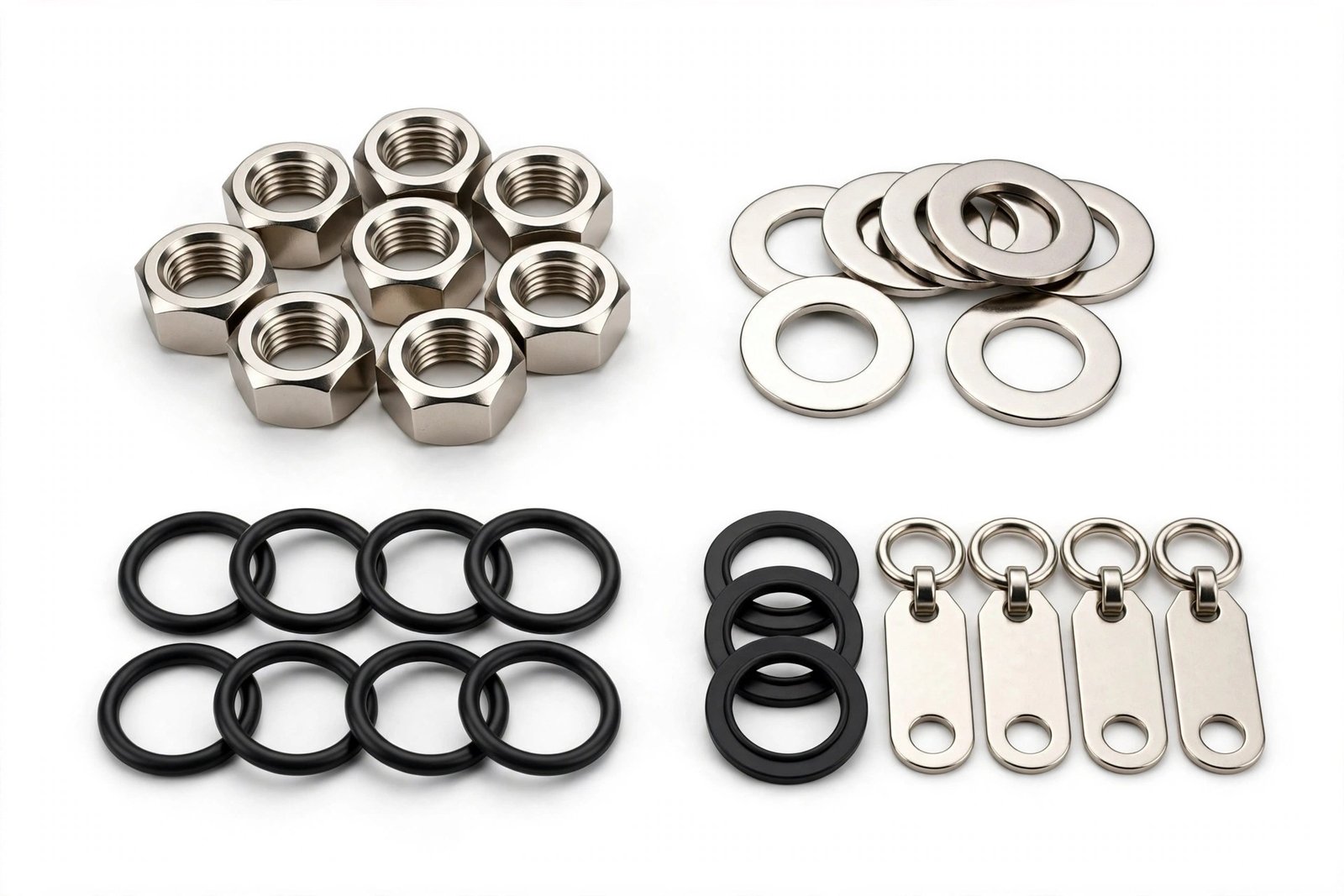

Brass cable gland accessories — earth tags, lock nuts, shrouds

Gland kits & accessoriesEarth tags, lock nuts, shrouds

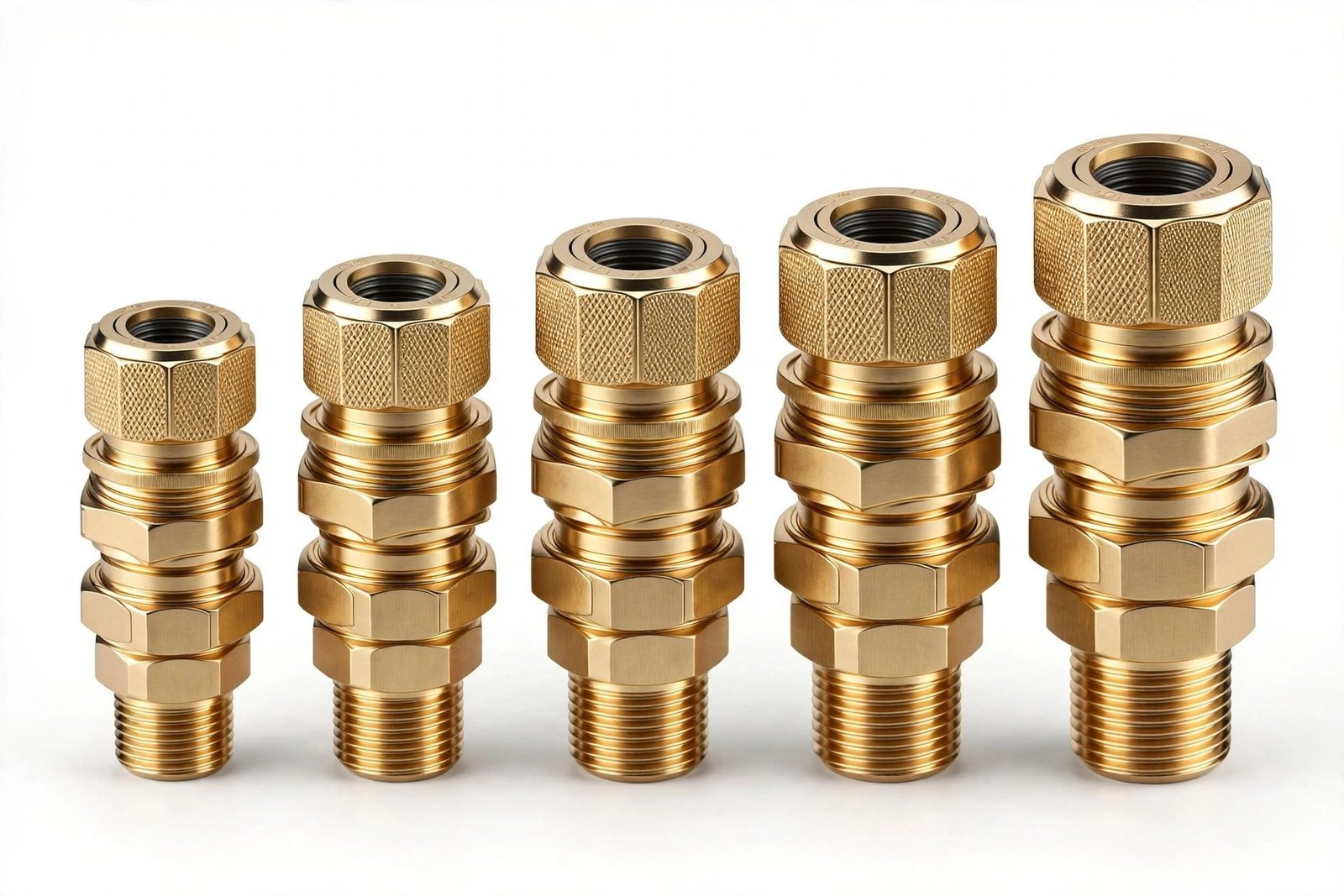

Brass PG and metric IP68 weatherproof cable glands

PG & metric glandsIP68 weatherproof

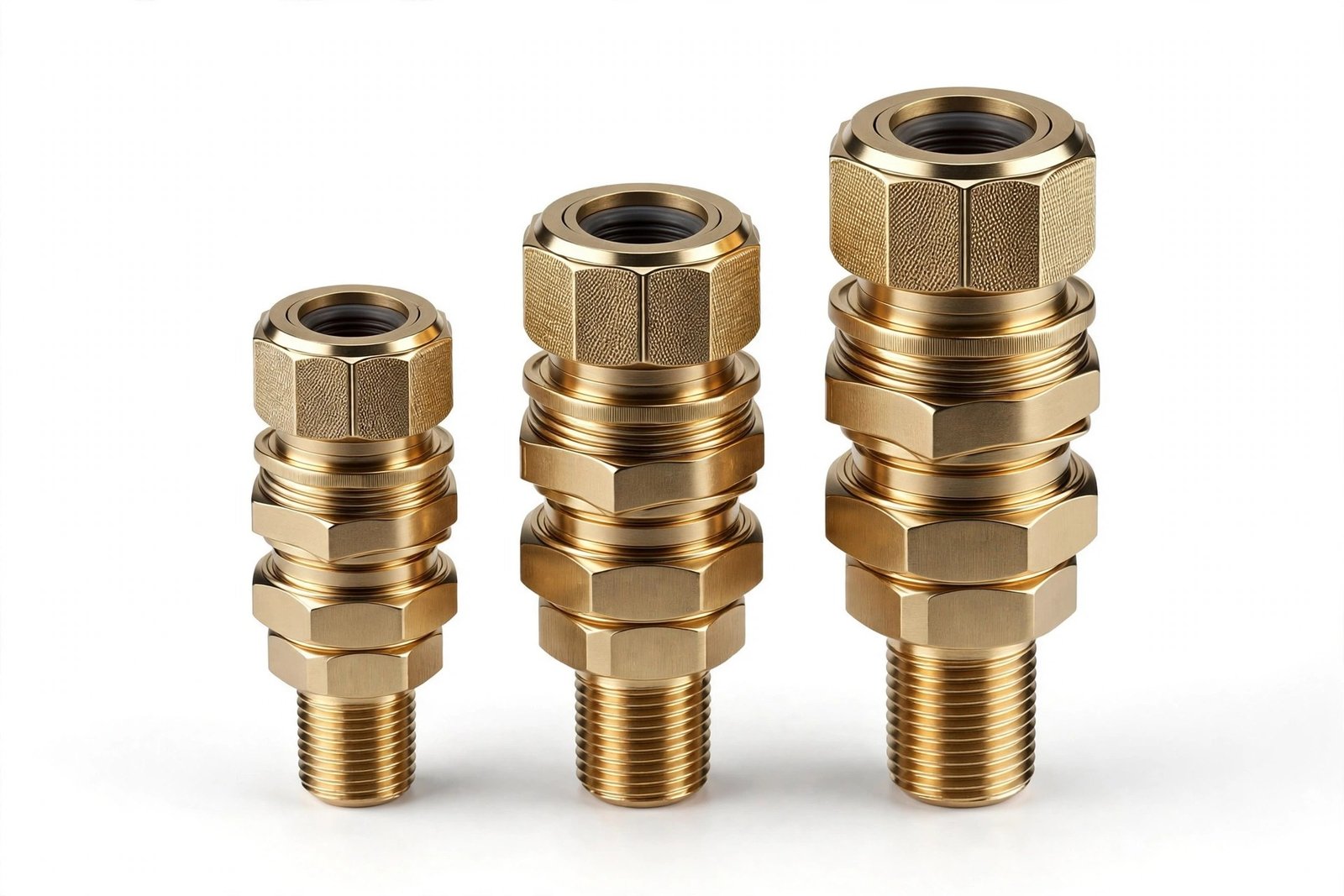

Brass BW CW cable glands for armoured cable

BW & CW glandsArmoured cable range

Engineering

Materials, seals & threads.

We build glands to the materials and thread systems international buyers specify.

Brass & Finish

IS 319 / CuZn39Pb3 / CDA-360 brassNatural or nickel-plated finish; tin and chrome on request.

Sealing

Neoprene / NBR / EPDM / silicone sealsIP66, IP67 and IP68 ingress protection options.

Sizes & Threads

20–90mm · PG7–PG48 · M12–M63Metric, PG, NPT and BSP threads; short & long variants.

Standards

BS 6121 / IEC 62444 type conventionsMaterial and dimensional test certificates provided on request.

Hazardous-Area Types

A2F / E1FW / E1FU gland typesFlameproof-style types for oil, gas and mining — matched to your area classification.

Inspection & Docs

Dimensional & thread checks every lotFirst-article samples available; export documentation with every shipment.

How We Work

From your BOM to export dispatch.

A straightforward five-step workflow — built for panel builders and EPC contractors who order glands by the thousand.

1

BOM / BOQ review

Send your gland list, sizes and quantities. We confirm the right BS 6121 type for each cable and flag mismatches.

2

Quote & sampling

Firm bulk pricing with lead time. First-article samples produced for your approval before full production.

3

CNC production

Bodies, cones and lock rings turned on CNC centres — prototype lots to high-volume export runs.

4

Plating & assembly

Nickel plating to spec, then seal fitting, kit assembly and dimensional checks across every lot.

5

Export dispatch

Kit-packed glands with earth tags and shrouds, shipped by sea, air or courier to your incoterms.

Export Supply

Built for importers, not just local buyers.

We already ship brass components to 12+ countries across four continents — glands leave Jamnagar export-packed with complete documentation.

●Global reach

12+ export countries across four continents, serving panel builders, EPC contractors and wholesalers.

●Flexible shipment

Sea, air and courier dispatch from Jamnagar, Gujarat — scheduled to your incoterms.

●Kit packing

Export-quality kit packing — gland + lock nut + earth tag + shroud — customized on request.

●Clean paperwork

HS-code invoicing with material and dimensional test certificates on request.

FAQ

Common questions from cable gland buyers.

Which types of brass cable glands do you manufacture?+

A1/A2, BW, CW, E1W/E2W, PG/metric, marine, flameproof and double compression glands plus accessories — in brass IS 319 with nickel-plated finish, to your size and thread specification.

What is the difference between BW, CW and E1W cable glands?+

BW glands are for indoor SWA armoured cable with no seal. CW glands add an outer-seal for outdoor SWA cable (IP66 and above). E1W glands are double compression — sealing both the inner bedding and outer sheath of SWA cable — for the toughest indoor/outdoor duty.

What IP ratings are available on your brass cable glands?+

IP66, IP67 and IP68 options with neoprene, NBR, EPDM or silicone seals for indoor and outdoor installations.

What sizes and threads do your cable glands come in?+

20mm to 90mm (short/long), PG7 to PG48 and M12 to M63, with metric, PG, NPT and BSP threads.

Do you supply glands for hazardous areas?+

Yes. We manufacture flameproof-style gland types such as A2F, E1FW and E1FU for oil, gas and mining applications — share your area classification and we will confirm the suitable type.

Which standards do your brass cable glands follow?+

Our BW, CW, E1W and A1/A2 glands follow BS 6121 / IEC 62444 type conventions, with ingress protection to IP66, IP67 and IP68.

Can you supply cable gland kits with accessories?+

Yes. Complete kits with brass lock nuts, earth tags and PVC shrouds are supplied for BW, CW and E1W ranges.

What is your minimum order quantity for brass cable glands?+

MOQs start at 100 to 500 pieces depending on type and size, with bulk pricing for larger export volumes.

What is your typical lead time for bulk gland orders?+

Lead times depend on type, size and quantity — share your BOM or BOQ and we will confirm a firm production schedule with the quote.

Do you export brass cable glands from Jamnagar?+

Yes. We export to 12+ countries across four continents with export-quality packing, HS-code invoicing and test certificates on request.

Bulk Export Quotes

Need glands in volume?

Share your gland type, size and quantity — we will confirm pricing, packing and shipment timeline.

Request a Quote
