The Problem We Solve

Sealed enclosures fail without a vent.

Every sealed housing breathes with temperature — without a vent, that breathing destroys the seal. Four failure modes, one brass plug.

✕Pressure buildup

Heat makes trapped air expand — pressure differentials stress housing seals until they deform or blow out.

✕Vacuum suction

When the enclosure cools, the vacuum inside sucks water and dust in through the seals.

✕Condensation

Trapped moisture condenses on cold electronics — the leading cause of corrosion and field failures.

✕Seal fatigue

Every thermal cycle flexes the gasket. Thousands of cycles later, the seal is permanently compromised.

✓The vent fixes all four.

A screw-in brass vent plug lets air and vapour flow freely through its ePTFE membrane — equalizing pressure continuously, letting trapped moisture escape, and blocking liquid water and dust. The enclosure stays sealed, the electronics stay dry.

Get Vent Pricing

Vent Types

Eight ranges. Every enclosure covered.

From standard M6–M16 metric vent plugs to custom-thread and high-temperature builds — every vent below is machined in-house in Jamnagar, in the thread and membrane grade your application specifies.

01

Metric Thread Vent Plugs

M6 to M16 screw-in protective vents — brass body, ePTFE membrane, silicone O-ring, IP67/IP68

02

IP68 Waterproof Vent Plugs

High water-entry-pressure vents for outdoor enclosures, lighting and marine housings

03

High-Airflow Vents

Large-membrane vents for big enclosures and cabinets with wide temperature swings

04

Automotive & EV Vents

Vents for battery packs, headlamps, sensors and ECUs — heat and vibration resistant

05

Brass Vent Glands

Gland-shaped ventilation fittings in PG and metric threads for cable-entry panels

06

Custom Thread Vents

NPT, BSP, PG and special threads machined to your drawing — any size, any quantity

07

Sintered-Bronze Breather Plugs

Porous bronze filter-element breathers for gearboxes, hydraulic tanks and pneumatic systems

08

High-Temperature Vents

Vents with high-temp membranes and seals for motors, inverters and hot enclosures

Where Our Vents Go

Vents for every sealed enclosure.

If your product lives outdoors, heats up, or gets washed down — it needs a vent. Find your industry, send the enclosure details.

●LED & Outdoor Lighting

Streetlight & floodlight housings
Anti-condensation venting
IP68 waterproof options
High-volume OEM supply

●Telecom & Network Enclosures

Outdoor broadband cabinets
Tower-mounted amplifiers
Wireless access housings
IP CCTV enclosures

●Automotive & EV

Battery pack venting
Headlamp & sensor housings
ECU enclosures
Vibration-resistant builds

●Solar & Renewables

Inverter & combiner boxes
High-airflow large enclosures
UV-stable materials
Desert & coastal duty

●Industrial Machinery

Gearbox breather plugs
Hydraulic reservoir breathers
Sintered-bronze filtration
40-micron filter elements

●Marine & Coastal

Marine electronics housings
Nickel-plated brass bodies
Salt-spray resistant finishes
IP68 submersion options

In Production

Machined, assembled and inspected in Jamnagar.

A glimpse of our breather vent output — clean threads, seated membranes, consistent finish, ready for export packing.

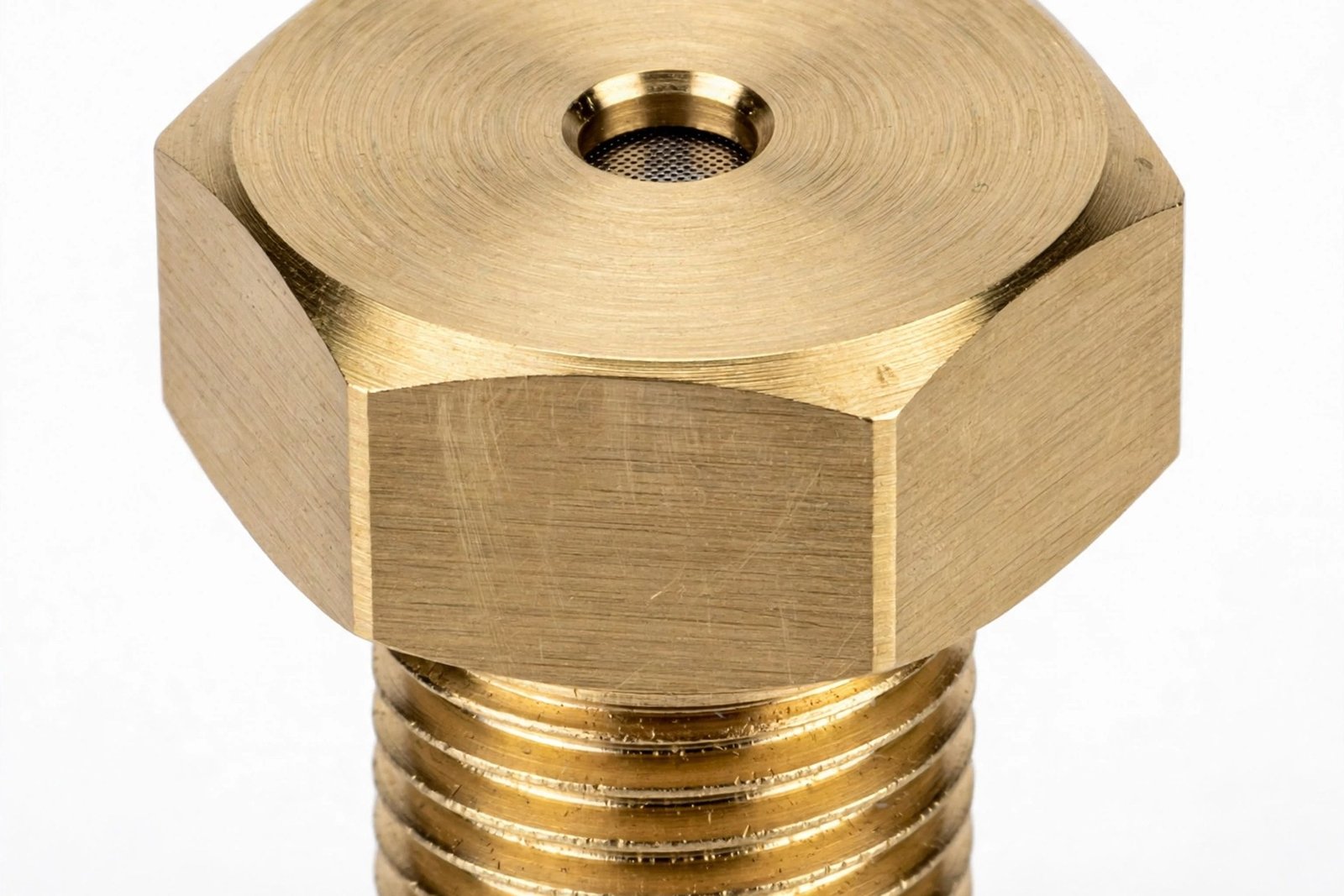

Close-up of brass IP68 vent plug with ePTFE membrane and O-ring seal

Membrane & seal detailePTFE membrane, silicone O-ring

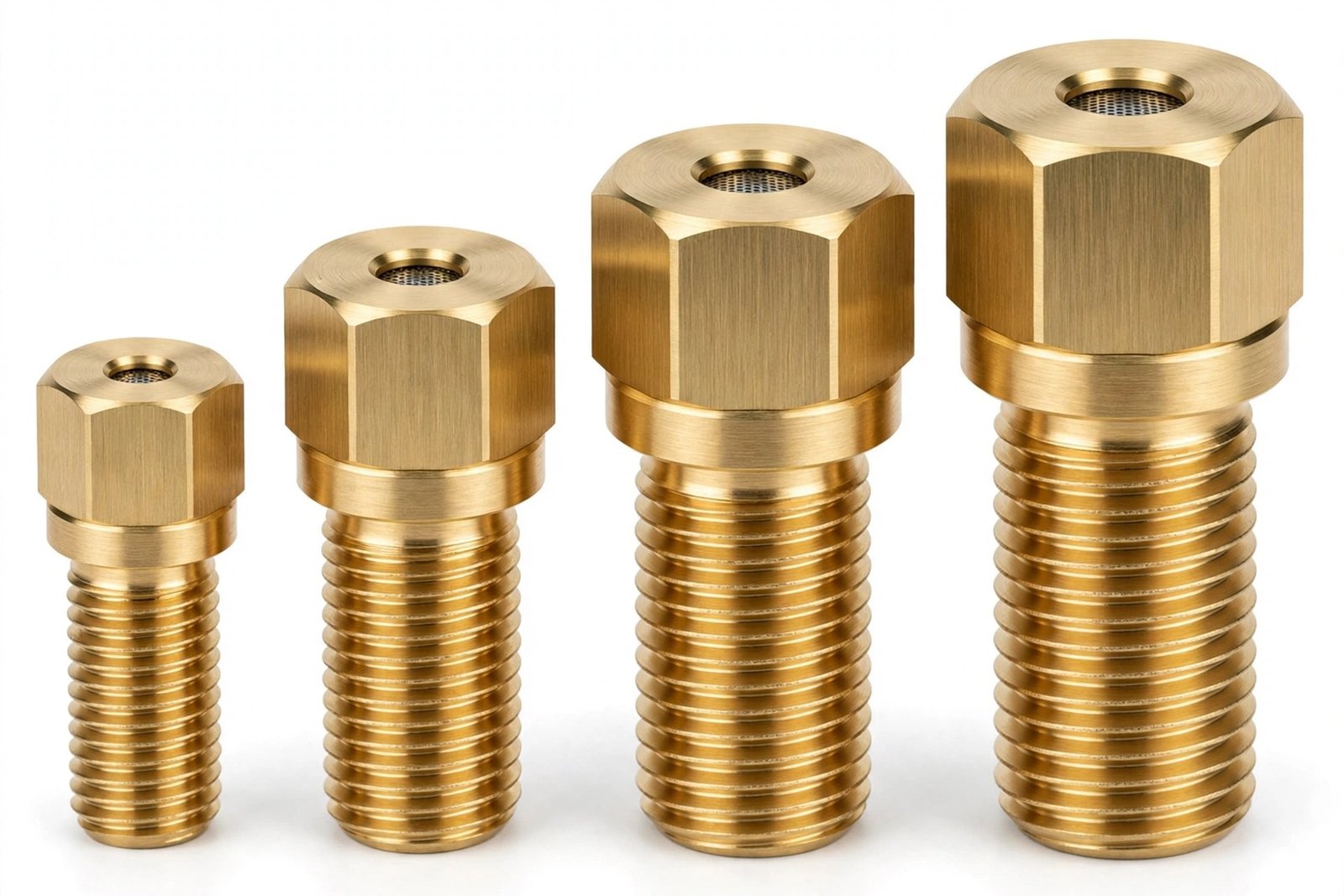

Brass breather vent plugs in metric thread sizes M6 to M16

Thread sizes M6–M16Metric, PG, NPT, BSP on request

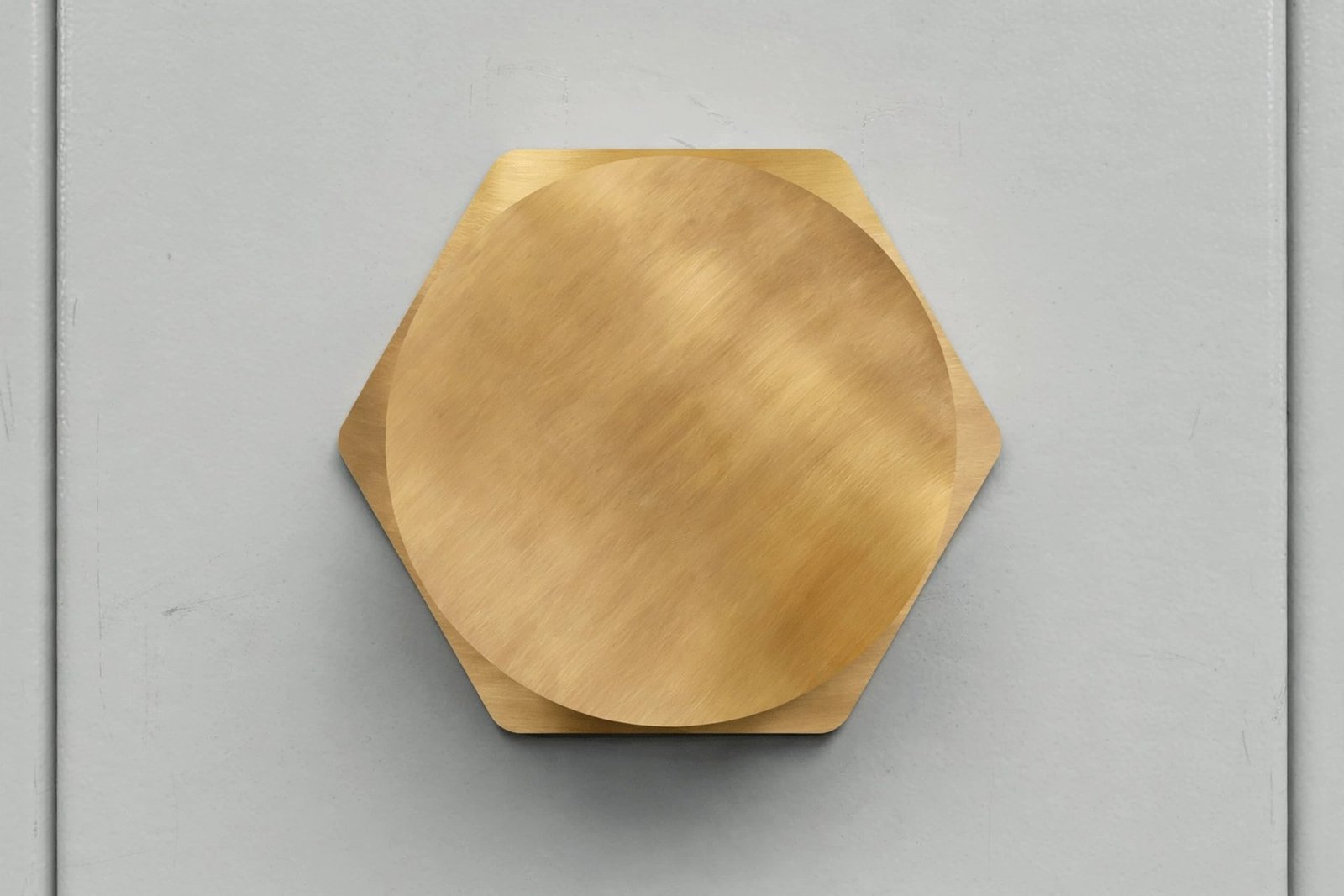

Brass breather vent installed on LED lighting enclosure

Installed on LED housingPressure equalization in service

Brass breather vent plug range for enclosures and machinery

Full vent rangeEnclosures & machinery

Engineering

Materials, membranes & threads.

We build vents to the materials and thread systems international enclosure buyers specify.

Body & Finish

IS 319 / CuZn39Pb3 brassNatural or nickel-plated finish for salt-spray and UV resistance.

Membrane

Hydrophobic–oleophobic ePTFE microporous membraneBlocks water and dust while equalizing pressure; airflow graded per size.

Sealing

Silicone / EPDM O-ringIP67 and IP68 ingress protection options, test condition stated on datasheet.

Threads

M6–M16 metric standardPG, NPT and BSP threads plus fully custom threads to your drawing.

Environmentals

−40 °C to +125 °C operating rangeUV-stable materials; plated versions for corrosive outdoor duty.

Installation

Threaded hole or through-hole with locknutRecommended torque per size on the datasheet; O-ring compression seal.

Thread	Typical airflow @ 70 mbar	Across flats
M6 × 1.0	~150 ml/min	10 mm
M8 × 1.25	~300 ml/min	12 mm
M10 × 1.5	~500 ml/min	14 mm
M12 × 1.5	~900 ml/min	17 mm
M16 × 1.5	~1,600 ml/min	22 mm

Typical values — exact airflow depends on membrane grade and test setup. Detailed datasheets with dimensions, torque values and IP test conditions are shared on enquiry.

How We Work

From your enclosure spec to export dispatch.

A straightforward five-step workflow — built for lighting OEMs and enclosure manufacturers who spec vents by the thousand.

1

Application review

Share your enclosure volume, temperature range and IP target. We recommend the vent type, size and membrane grade.

2

Quote & sampling

Firm pricing with lead time. Samples with datasheets for your evaluation before bulk production.

3

CNC production

Vent bodies turned on CNC centres — prototype lots to high-volume OEM runs, threads gauged every lot.

4

Assembly & test

Membrane seating, O-ring fitting and seal checks — every vent leaves ready to install.

5

Export dispatch

Export-grade packing that protects threads and membranes, shipped by sea, air or courier to your incoterms.

Export Supply

Jamnagar’s protective-vent maker, shipping worldwide.

Brass membrane-type protective vents are rarely machined in Jamnagar — we fill that gap for 12+ export countries across four continents, with vents leaving export-packed and fully documented.

●Global reach

12+ export countries across four continents, serving lighting OEMs, panel builders and enclosure manufacturers.

●Flexible shipment

Sea, air and courier dispatch from Jamnagar, Gujarat — scheduled to your incoterms.

●Application support

Share your enclosure volume and temperature range — we recommend the right vent size and airflow.

●Clean paperwork

HS-code invoicing with material and dimensional test certificates on request.

FAQ

Common questions from breather vent buyers.

What are brass breather vents (protective vents)?+

Screw-in brass vent plugs with a microporous ePTFE membrane and O-ring seal. They equalize pressure inside sealed enclosures while blocking water, dust and contaminants — rated IP67/IP68.

Why does a sealed enclosure need a vent?+

Heating and cooling cycles make trapped air expand and contract, creating pressure differentials that stress housing seals — and a cooling enclosure can suck liquids in through its seals. A vent equalizes pressure continuously while its membrane blocks water and dust, and lets trapped water vapour escape to reduce condensation.

What IP ratings do your brass vent plugs offer?+

IP67 and IP68 options, with the test condition (immersion depth and duration) stated on the datasheet. IP69K is available on select types for high-pressure washdown duty.

What thread sizes are available?+

Metric M6 to M16 as standard, with PG, NPT and BSP threads and fully custom threads made to your drawing.

How do I select the right vent size and airflow?+

Match the vent’s airflow to your enclosure volume and temperature swing. Our spec table lists typical airflow per thread size at 70 mbar — share your enclosure details and we will recommend the right size, with a detailed datasheet on enquiry.

Membrane vent or sintered-bronze breather — which do I need?+

Choose a membrane vent for waterproof IP67/IP68 enclosure protection — LED housings, outdoor cabinets, automotive electronics. Choose a sintered-bronze breather for gearboxes, hydraulic reservoirs and pneumatic systems, where the job is filtration (typically 40 micron) rather than waterproofing. We manufacture both lines separately.

How many vents does one enclosure need?+

It depends on enclosure volume, temperature swing and how fast pressure must equalize. Small housings usually need one vent; large cabinets may need two or more. Share your enclosure volume and we will size the vent count and airflow.

Do you provide datasheets and samples?+

Yes. Detailed datasheets with dimensions, airflow, torque values and IP test conditions are shared on enquiry, and samples are available for evaluation before bulk orders.

What is your minimum order quantity for breather vents?+

MOQs start at 100 to 500 pieces depending on size and finish, with bulk pricing for larger export volumes.

Do you export brass breather vents from Jamnagar?+

Yes. We export to 12+ countries across four continents with export-quality packing, HS-code invoicing and test certificates on request.

Bulk Export Quotes

Need vents in volume?

Share your thread size, IP requirement and quantity — we will confirm pricing, packing and shipment timeline.

Request a Quote
