Terminals · Lugs · Switchgear Parts · JamnagarBrass Electrical Parts Manufacturer in Jamnagar, India
Litebow Industries machines brass electrical terminals, cable lugs, MCB and switchgear parts, neutral links and earthing accessories — tin and nickel plated, to DIN dimensional conventions — for panel builders, switchgear OEMs and distributors across four continents. Bulk export quotes on request.

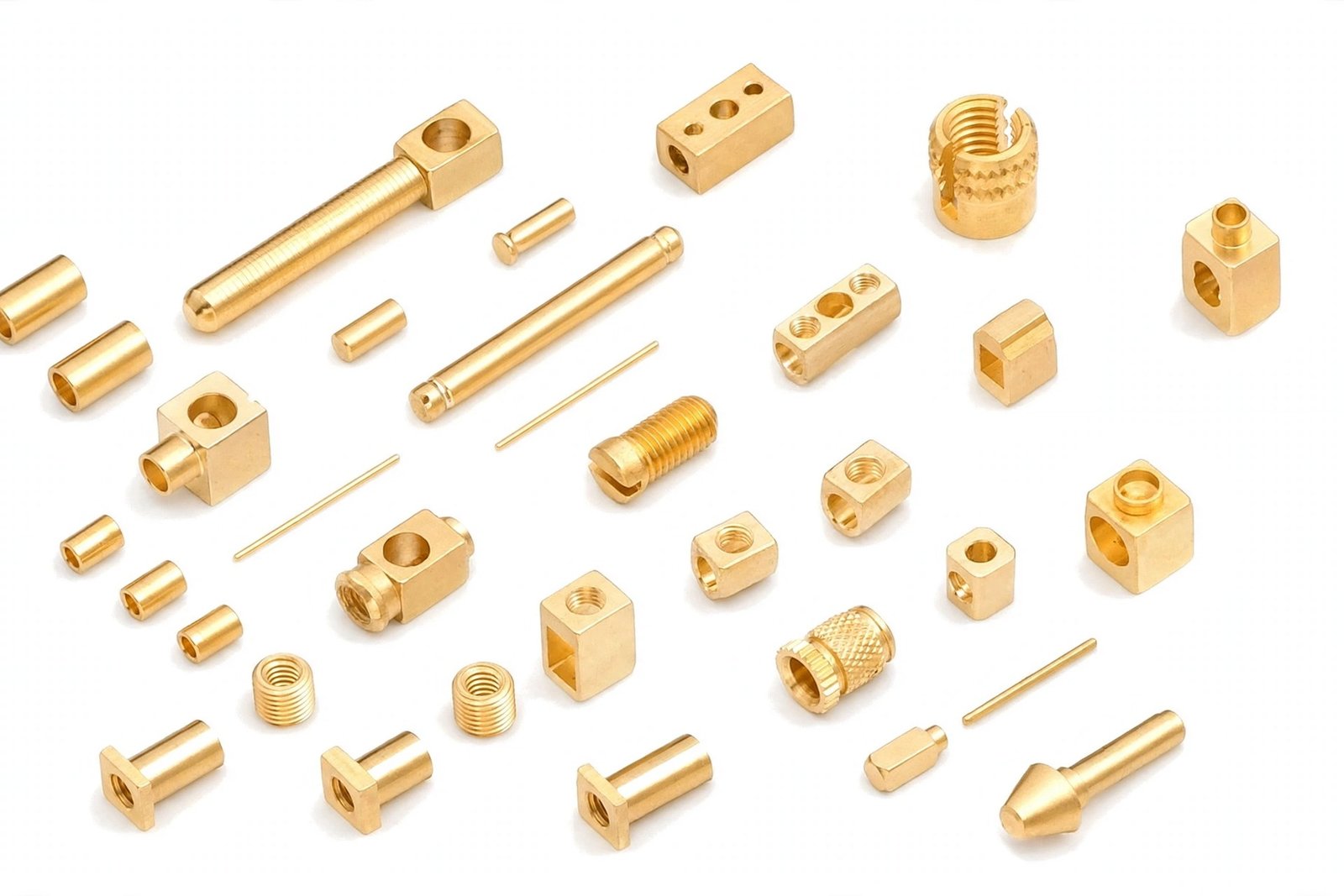

Brass terminals, lugs & pins — machined in Jamnagar for global buyers.
Why electrical makers specify brass.
Copper conducts better — but brass machines better, threads better and lasts longer in the connection. Six reasons terminals are brass.
✓Conductivity + machinability
Good electrical conductivity with far superior machinability — complex terminal geometries turned fast and repeatably.
✓Thread integrity
Precise threads that survive repeated connection cycles without stripping under installation torque.
✓Non-magnetic
Essential for applications sensitive to magnetic interference and electromagnetic shielding.
✓Non-sparking
Inherently safe for electrical components used in explosive atmospheres and flammable environments.
✓Corrosion resistance
Resists tarnishing and oxidation — connections stay low-resistance through years of service.
✓Cost balance
The best balance of conductivity, strength and price for light-duty, control and panel wiring.
Eight families. Every connection covered.
From ring terminals to HRC fuse contacts — every part below is machined in-house in Jamnagar in IS 319 free-cutting brass (tinned copper where the standard demands it), in the size, plating and tolerance your project specifies.

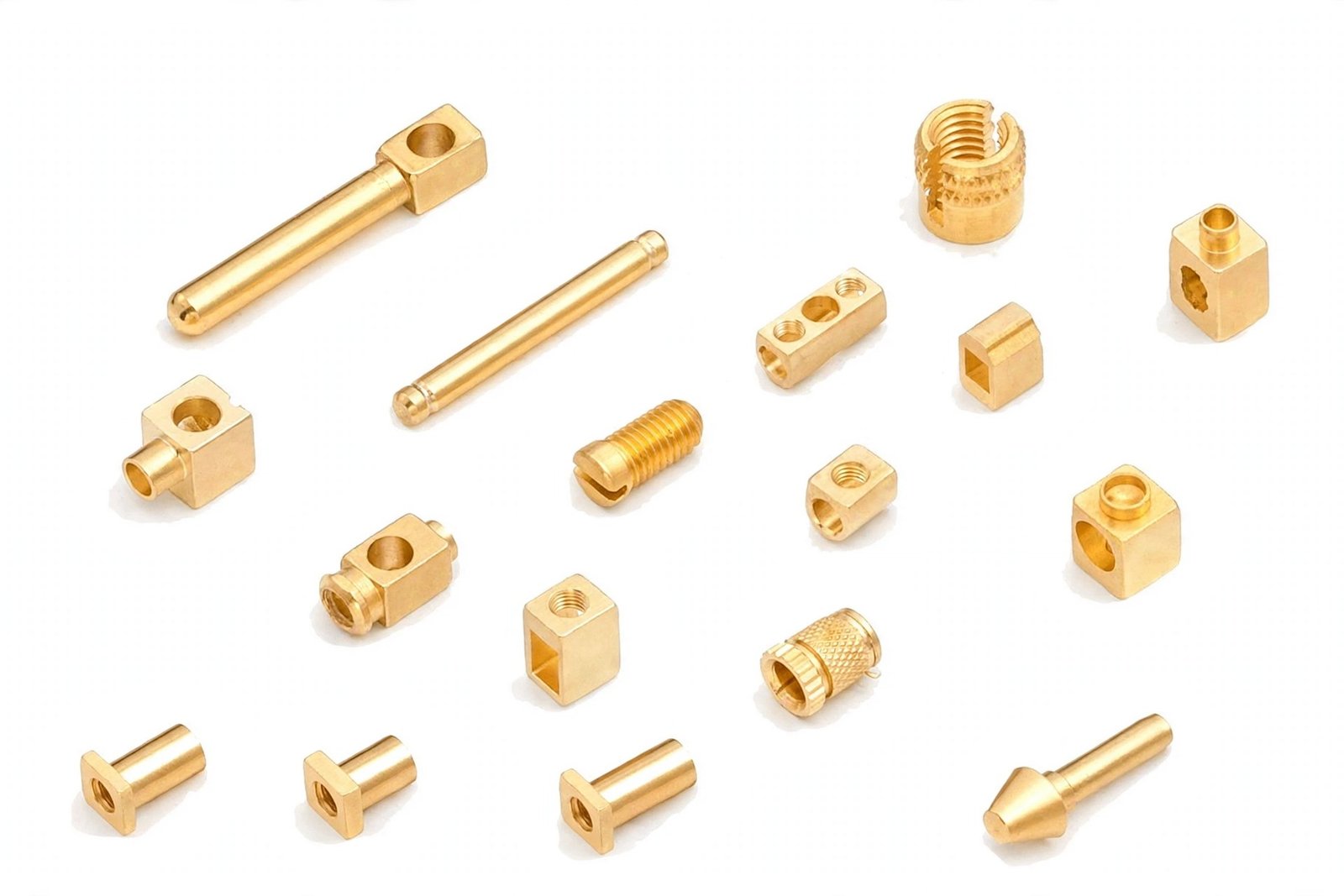

Brass Terminals & Connectors
Ring, spade, pin terminals, ferrules and splices — brass, tin/nickel plated, to DIN 46234 dimensions

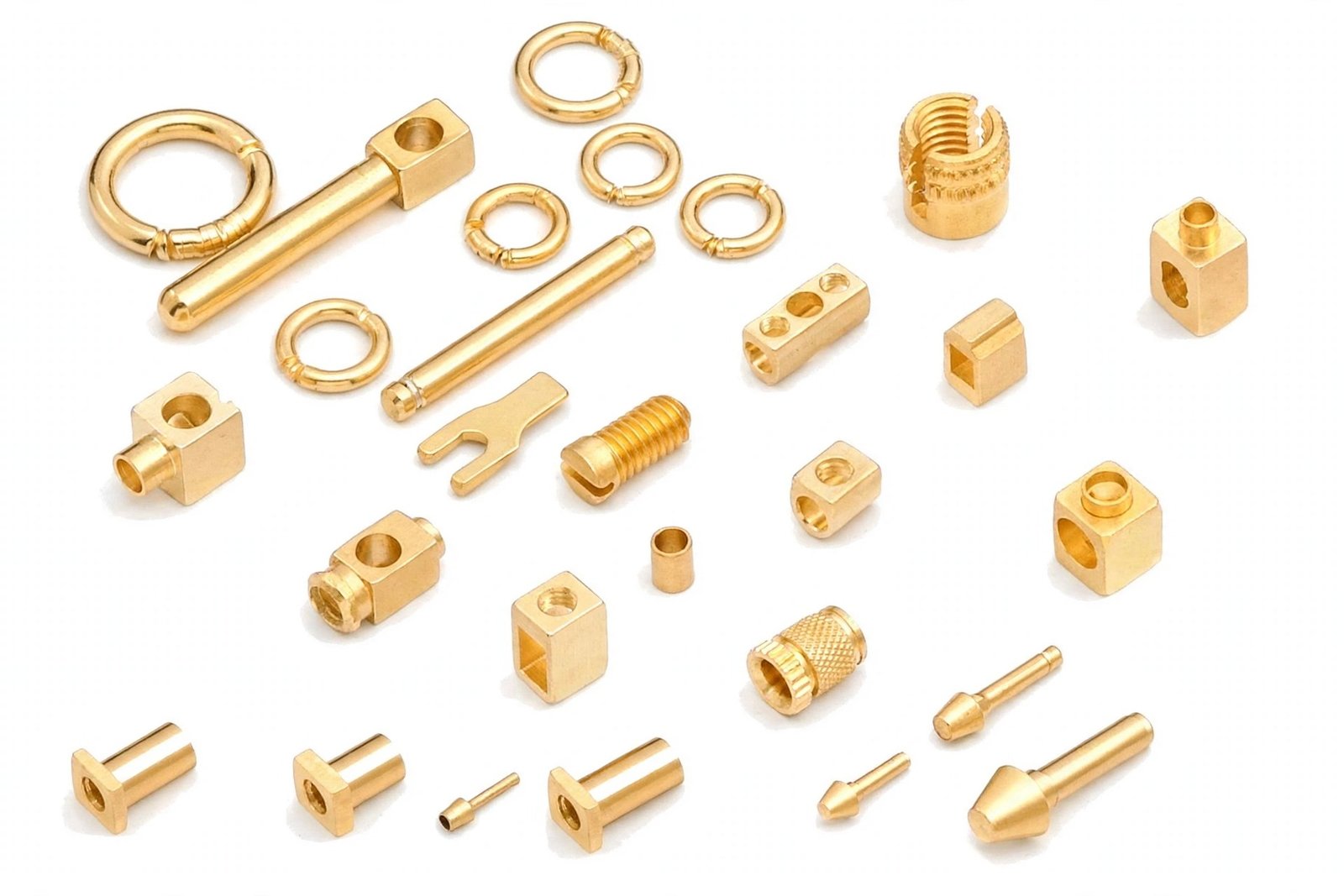

Cable Lugs
Brass lugs for light duty + tinned-copper tubular lugs for high current — separate lines, 6–1000 mm²
Brass Pins, Sockets & Inserts
Plug pins, PCB terminals, charger pins, moulding and threaded inserts — CNC tolerance ±0.02 mm

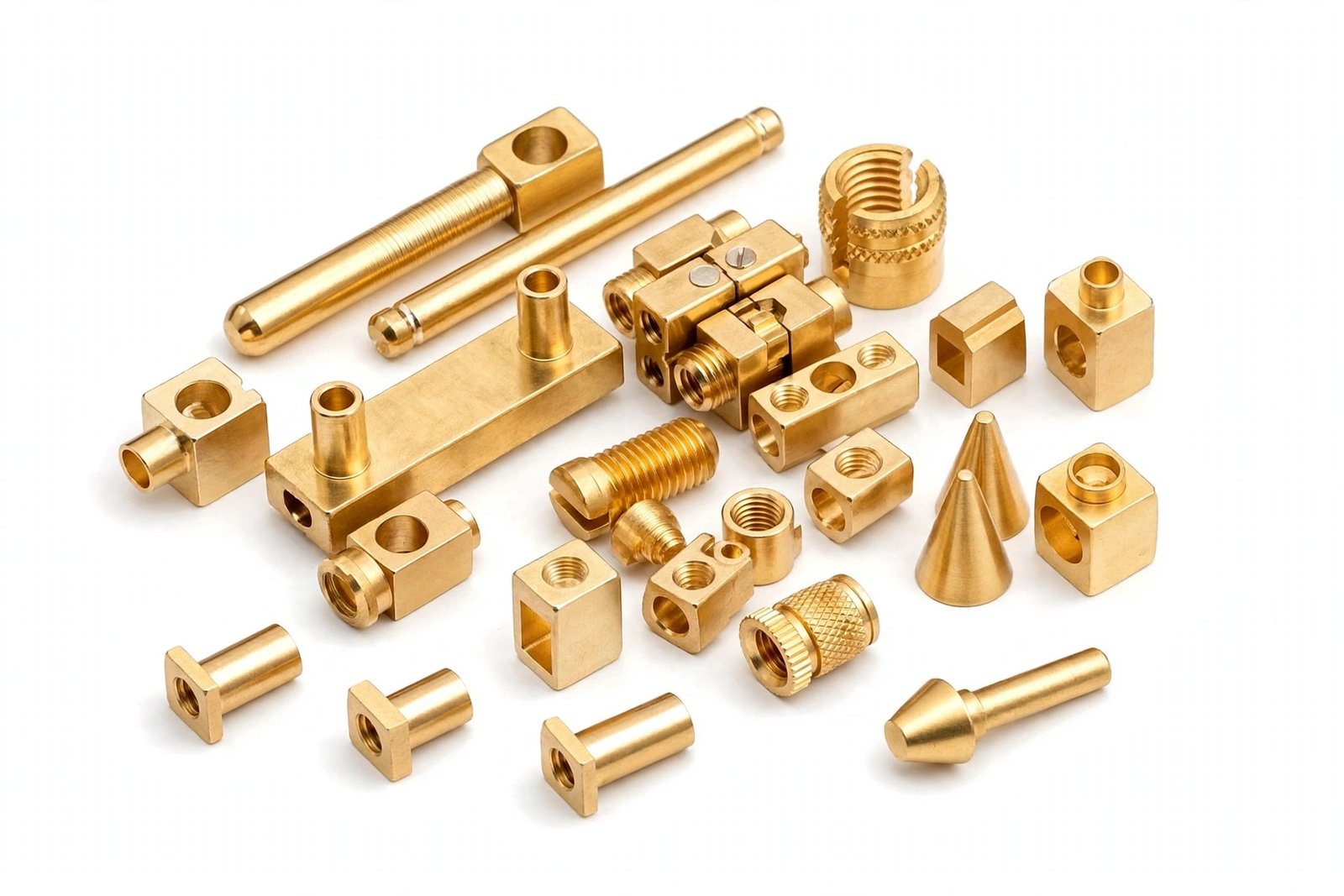

Switchgear & MCB Parts
Terminal connectors, contact carriers, pivot pins, arc-chute hardware, calibration plates
Earthing Accessories
U/A/G clamps, rod-to-cable clamps, split bolts, test clamps — brass and gunmetal
Neutral Links & Bars
4-way / 8-way neutral links, earth bars, terminal blocks and studs up to 500A
Fuse Components
HRC fuse contacts and links 16–100A, fuse caps, holders and bases
Battery Terminals
Lucas, Bosch, USA-car and universal crimp types — full range on our Automotive page
Brass parts for every electrical industry.
If you build panels, switchgear or wiring systems, you are already buying parts from our range. Send your BOM or drawing.
●Panel Building & Switchgear
- Ring, spade & pin terminals
- Neutral links & earth bars
- MCB terminal parts
- Terminal blocks & studs
●Power Distribution & Utilities
- Earthing clamps & accessories
- Cable lugs 6–1000 mm²
- Rod-to-cable clamps
- Test clamps & split bolts
●Automotive & EV
- Battery terminals
- Fuse contacts & holders
- Sensor connectors
- Charger pins
●Industrial Automation
- PCB terminals
- Threaded & knurled inserts
- Plug pins & sockets
- Control panel wiring parts
●Marine & Offshore
- Nickel-plated terminals
- Corrosion-proof earthing
- Salt-spray resistant finishes
- Gunmetal earthing parts
●Renewables & Rail
- Combiner box terminals
- Vibration-proof connections
- Inverter wiring hardware
- Export documentation
Machined, plated and inspected in Jamnagar.
A glimpse of our electrical brass output — clean threads, consistent plating, ready for export packing.
Materials, plating & honesty.
We use brass where brass wins — and tinned copper where the standard demands it.
Brass Grades
IS 319 / BS 249 / CuZn39Pb3 free-cutting brassCNC tolerance ±0.02–0.05 mm; RoHS-compliant lead-free brass on request.
Copper Where It Counts
Tinned electrolytic copper for high-current lugsHigh-current tubular lugs follow the DIN 46235 copper class — we keep brass and copper lugs as separate lines.
Plating Matrix
Electro-tin standard · nickel 8–12 µm · silver on requestTin for solderability and anti-oxidation; nickel for wear and corrosion; silver for contact faces.
Dimensional Conventions
To DIN 46234 / 46235 dimensions on requestMachined to the standard’s dimensions; formal compliance or UL listing only where independently certified.
| Family | Sizes | Plating | Notes |
|---|---|---|---|
| Terminals & connectors | M3–M12 studs · 0.5–16 mm² wire | Tin / nickel | To DIN 46234 dimensions |
| Cable lugs — brass | 6–300 mm² conductor | Tin / nickel | Light & control duty |
| Cable lugs — tinned copper | 6–1000 mm² conductor | Electro-tinned | High current, DIN 46235 class |
| Pins, sockets & inserts | Ø2–Ø12 mm | Nickel / tin | CNC ±0.02–0.05 mm |
| Neutral links & bars | 4-way / 8-way · up to 500A | Natural / tin | Bars to 1 m |
| HRC fuse contacts | 16–100A | Silver on request | Carriers supplied; contact plating usually OEM-applied |
Typical ranges — exact dimensions, current ratings and plating thickness per your drawing or our datasheet, shared on enquiry.
From your drawing to export dispatch.
A straightforward five-step workflow — built for panel builders and switchgear OEMs who order terminals by the ten-thousand.
Drawing review
Send your CAD drawing, DIN reference or sample. We confirm material, plating, tolerance and tooling — with DFM feedback where it helps.
Quote & sampling
Firm pricing with lead time. First-article samples produced for your approval before bulk production begins.
CNC production
Turning, milling and threading on CNC centres — prototype lots to high-volume OEM runs.
Plating & inspect
Electro-tinning or nickel plating to spec, then dimensional and thread checks across every lot.
Export dispatch
Export-grade packing that protects threads and plated surfaces, shipped by sea, air or courier to your incoterms.
Built for importers, not just local buyers.
We already ship brass components to 12+ countries across four continents — electrical parts leave Jamnagar export-packed with complete documentation.
12+ export countries across four continents, serving panel builders, switchgear OEMs and electrical distributors.
Sea, air and courier dispatch from Jamnagar, Gujarat — scheduled to your incoterms.
Send your CAD drawing or a DIN reference size — we confirm material, plating, tolerance and price.
HS-code invoicing with material and dimensional test certificates on request.
Common questions from electrical parts buyers.
What electrical brass parts do you manufacture?+
Why is brass the right material for electrical terminals?+
Should I choose brass or copper cable lugs?+
What plating and finish options do you offer?+
Do you make terminals to DIN 46234 / DIN 46235?+
Do you make PCB terminals and moulding inserts?+
What tolerances do you hold on turned brass parts?+
What is your typical lead time for bulk orders?+
Do you export electrical brass parts from Jamnagar?+
What is your minimum order quantity?+
Need electrical parts in volume?
Share your drawing, DIN reference or part list — we will confirm material, plating, tolerance and shipment timeline.
